Yacht Price
£895,000

Information

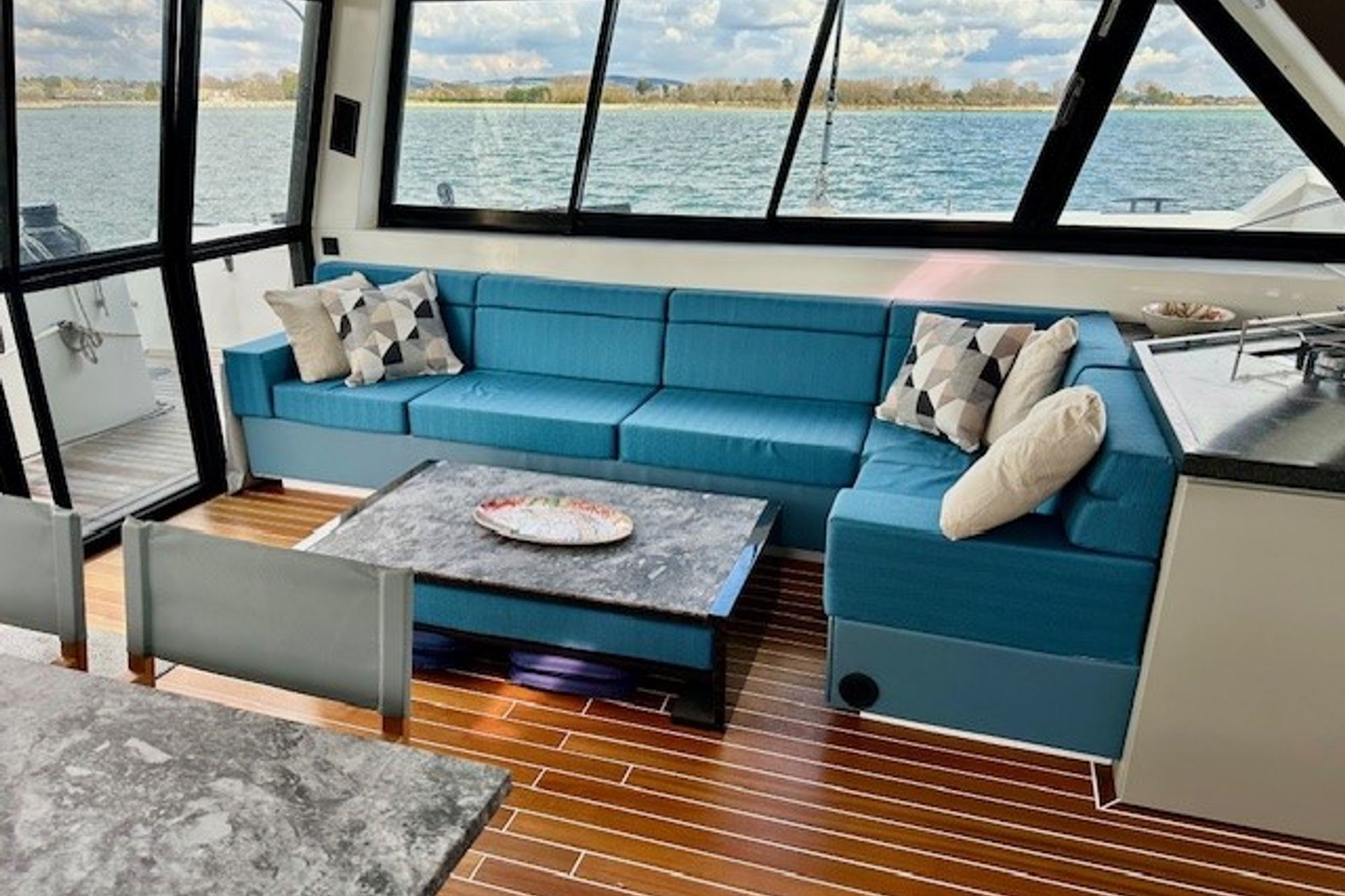

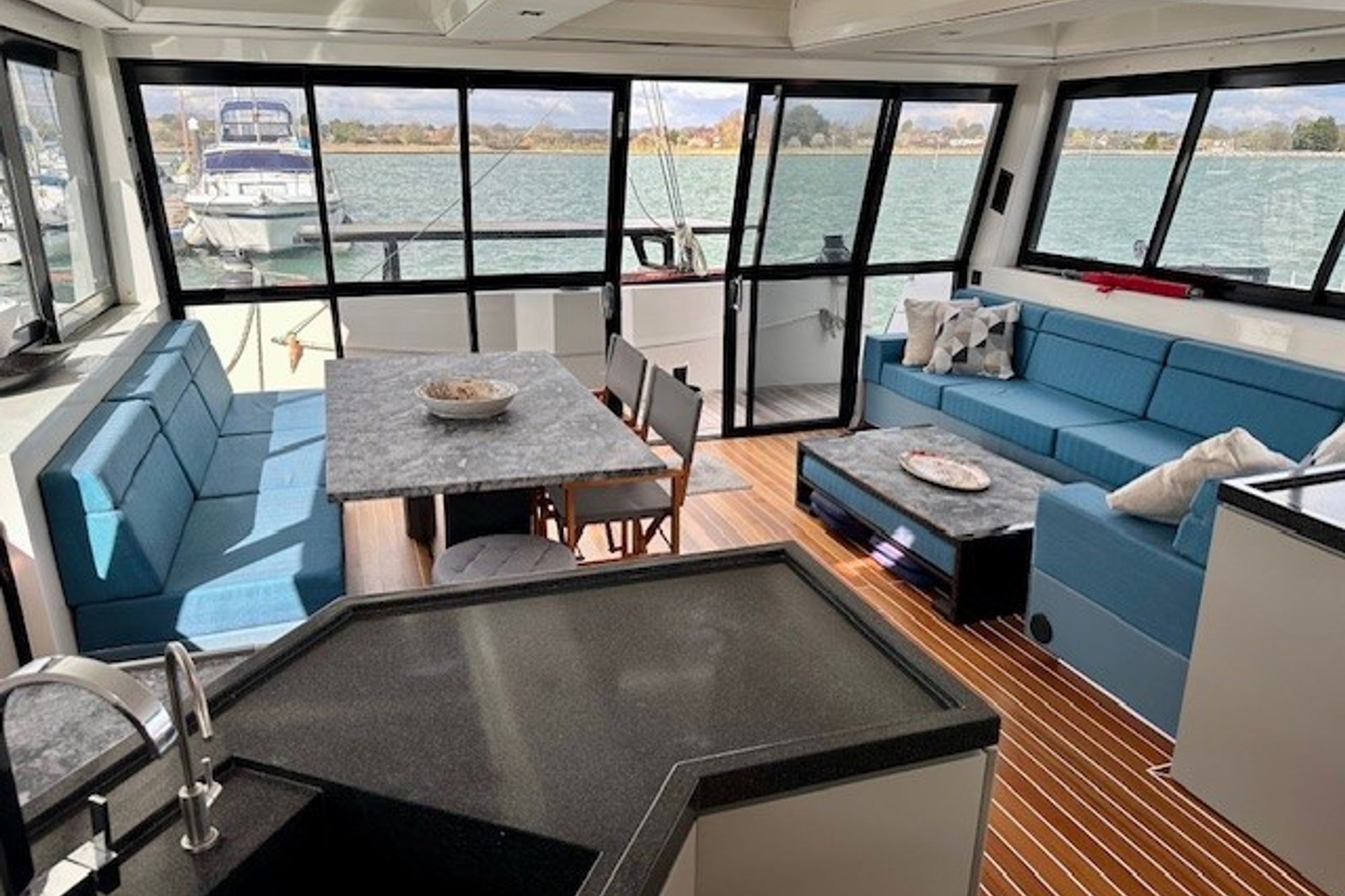

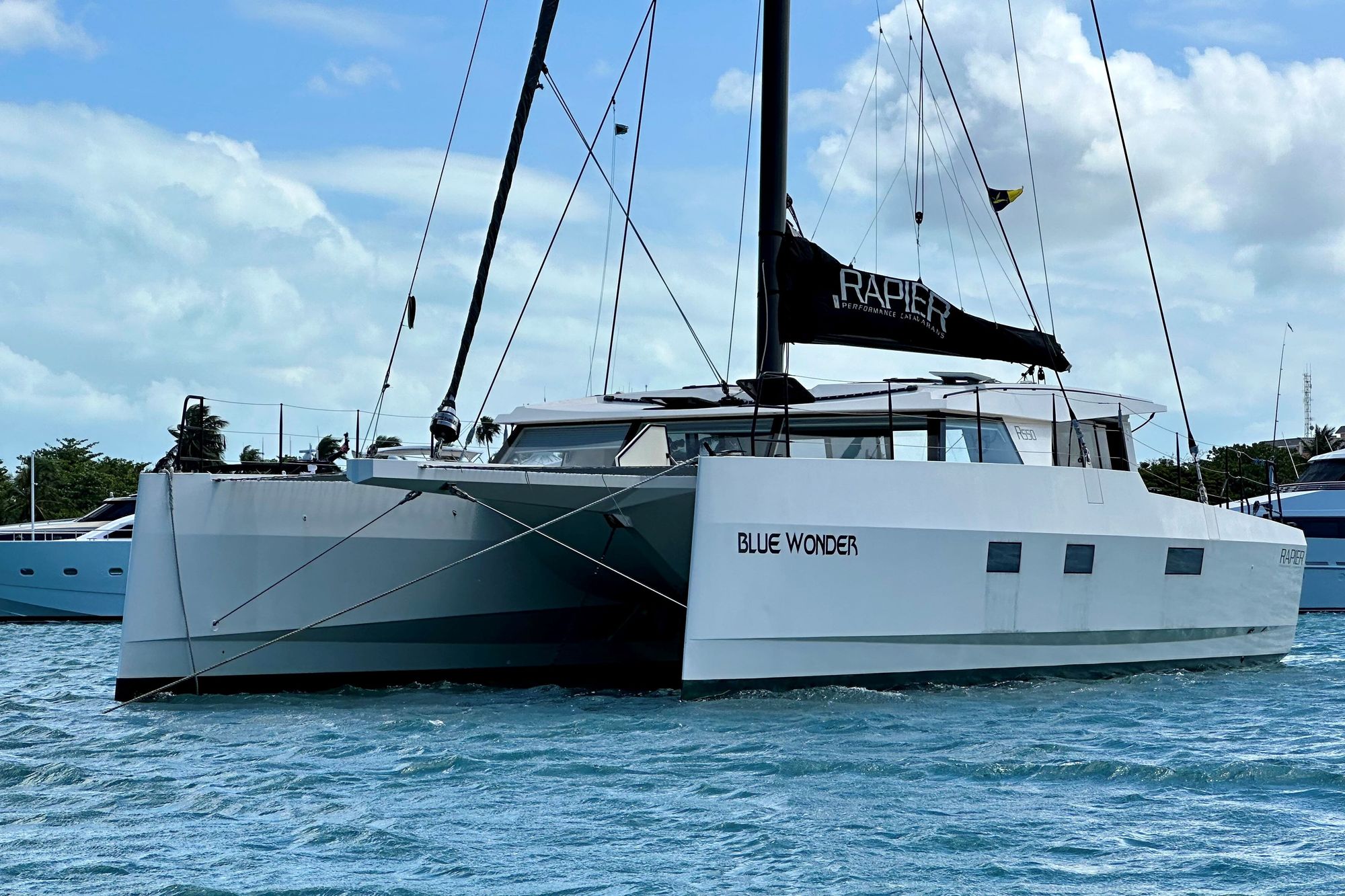

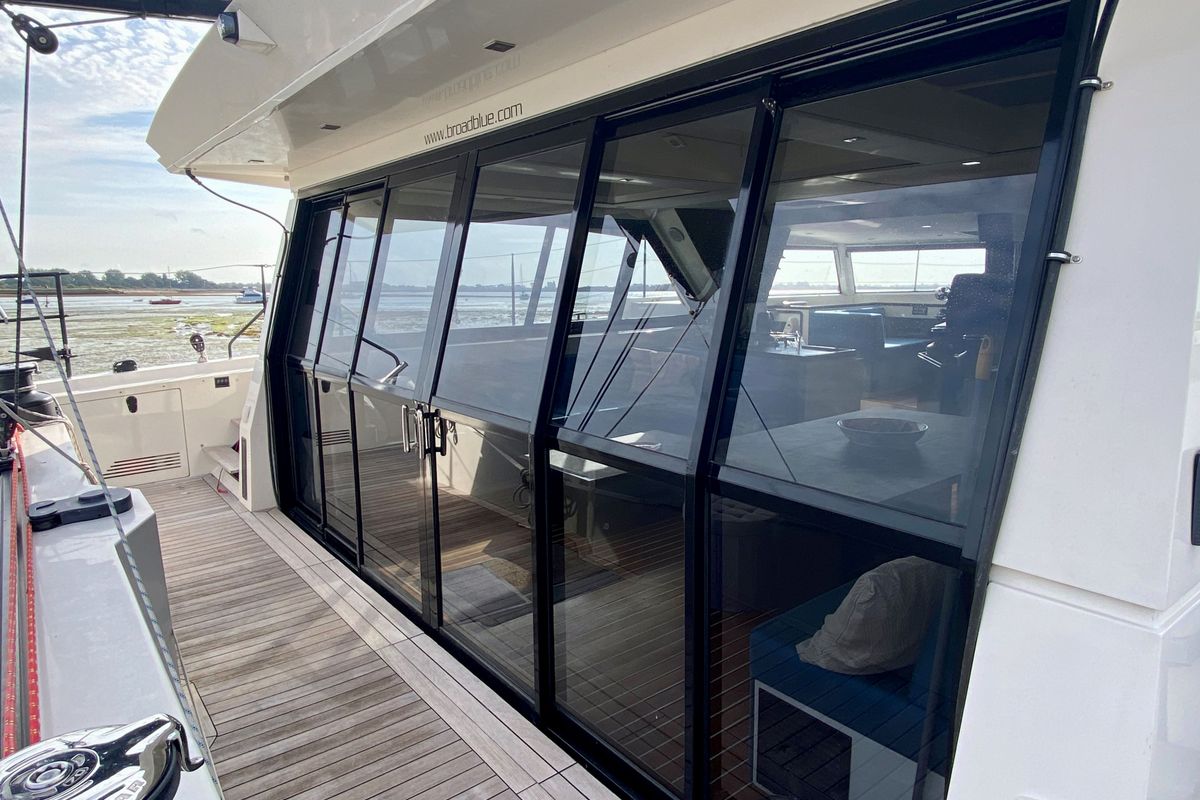

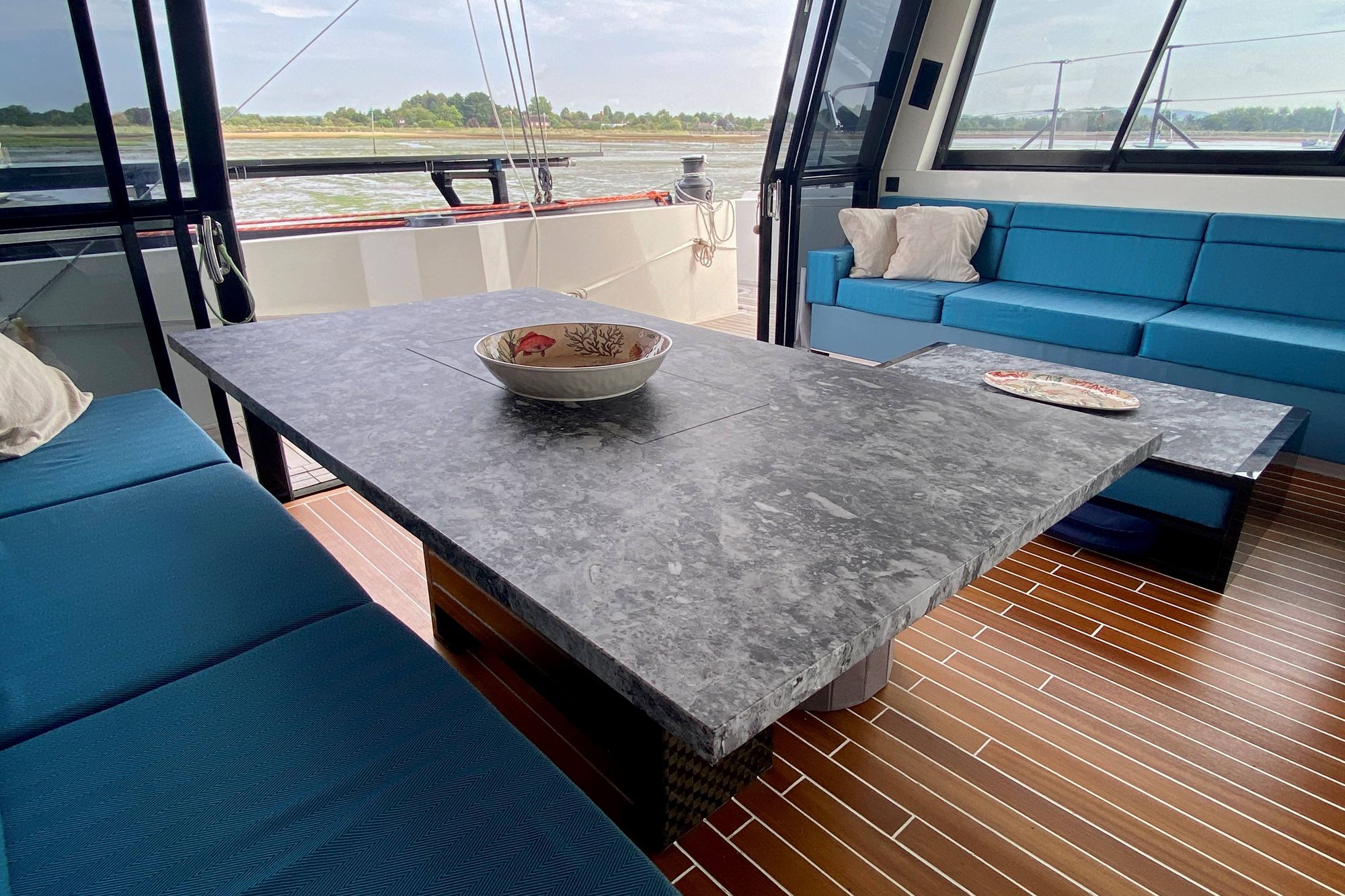

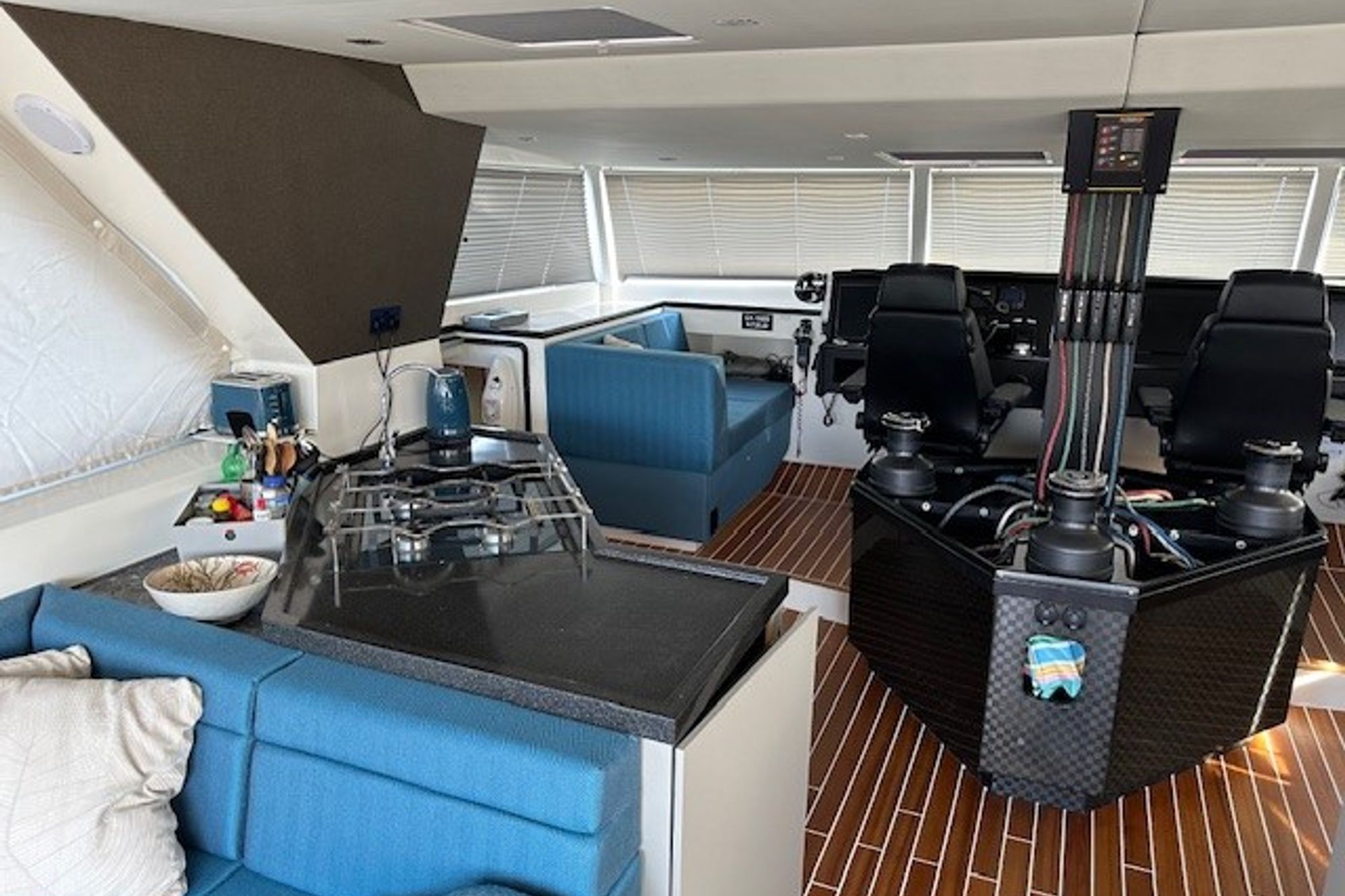

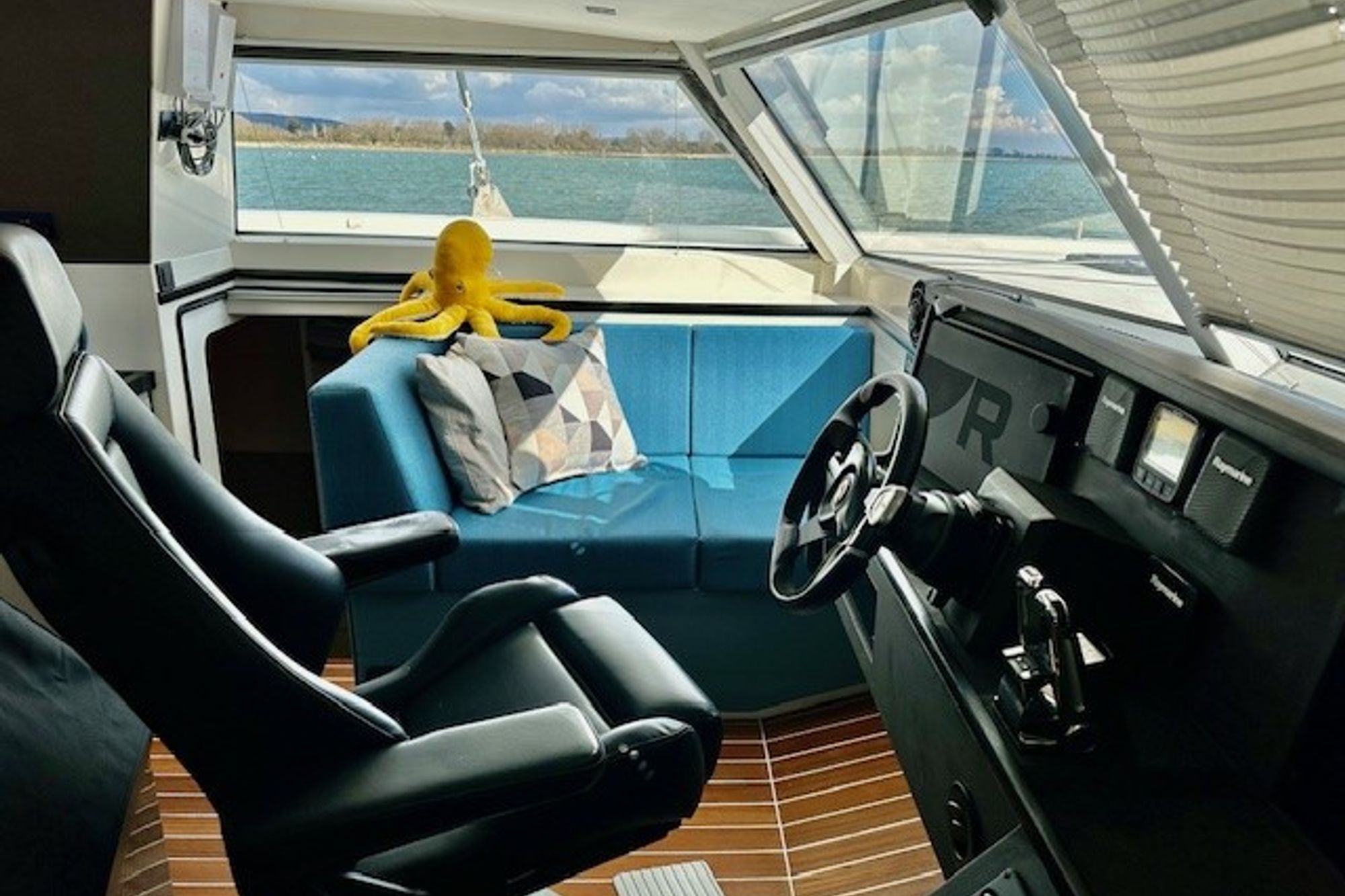

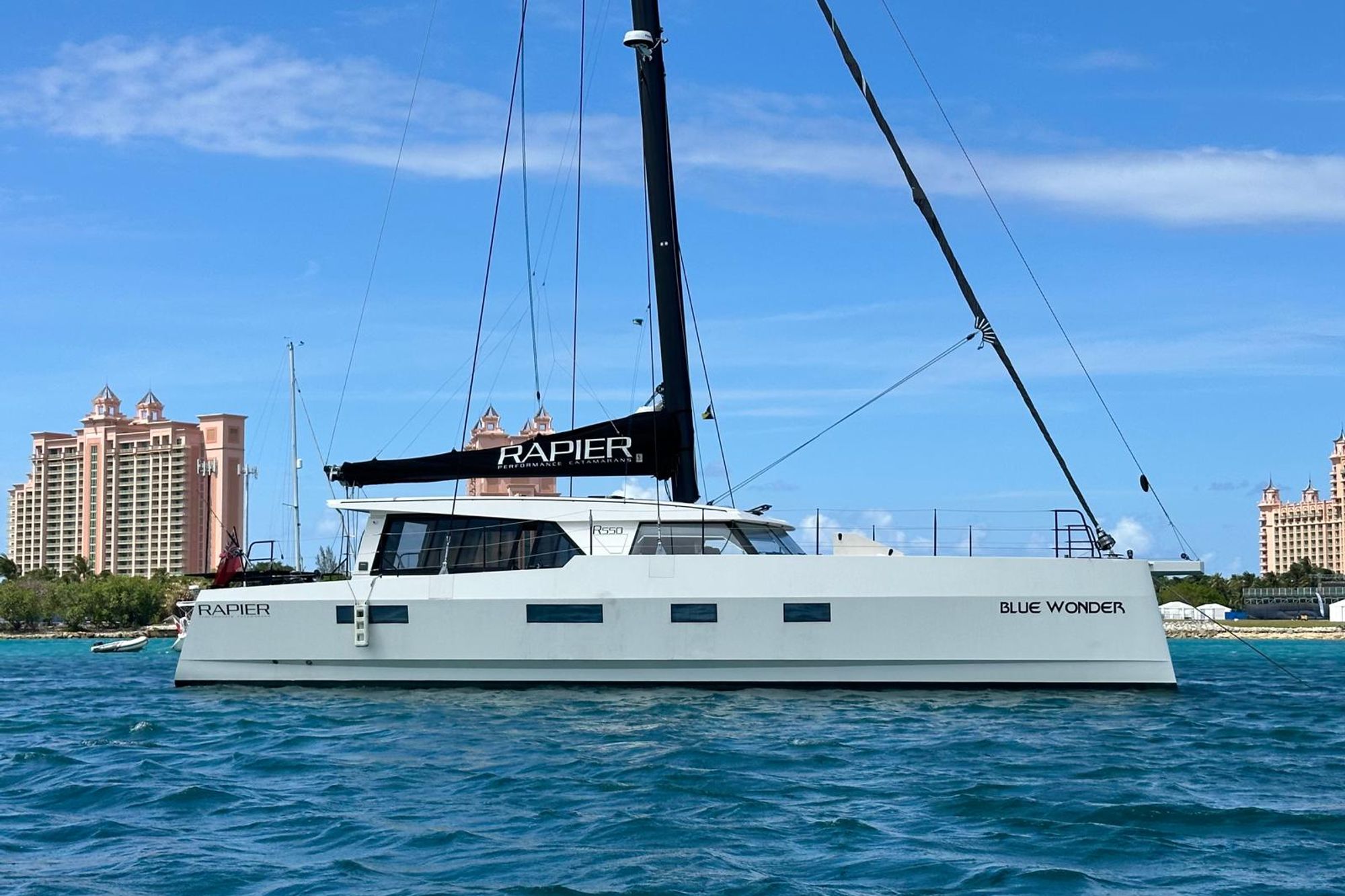

The Rapier 550 is a proven fast cruising catamaran, easily capable of covering 250+ miles per day, with Atlantic crossing experience to her credit. The key to the success of the Rapier 550 is light weight construction. It also features a forward helm position from where the skipper can safely keep watch at high speed while also controlling sail trim. This internal helm position offers safety and control without equal - no need to sit out in an exposed helm position on the transom or sit on the roof. Although external carbon tillers are also provided and fully functional for that hands on feeling and adrenaline rush. The huge opening windows of the saloon ensure that the Rapier 550 can always be matched to the weather conditions in which the boat is sailed. The interior of the Rapier 550 is designed for an owner couple and visiting friends to share a safe and exhilarating sail when the weather conditions suit but to always enjoy the space and comfort of a luxury catamaran under sail or at anchor. The three cabin layout of this boat has en-suite facilities together with an enormous open air saloon which can be opened up or closed in as the skipper prefers. Underway, the connection between the galley and the saloon means that the crew can enjoy wonderful dining without compromise in complete control and safety. At anchor, the sliding windows and doors and opening roof bring the outside in and offer the most comfortable outside sitting space available on any catamaran of this size. The performance of the Rapier 550 is possible because it was designed from the outset to be a thoroughbred with slim efficient hulls and with Carbon and E-glass Infused epoxy construction making it light and strong but with good looks and a proven cruising speed of 15 knots on passage.

Specification

  • Year2015
  • Length16.75m / 55 Ft
  • LocationUK - Emsworth
  • VAT PaidFalse
  • Boat Ref14736
  • Price£895,000

Enquiry Form

Name
Email
Message

Broker Comments

Why we like it: The Rapier 550 is designed and built as light and fast. It looks good and has a proven cruising speed of 15 knots or more,. The boat underwent a general refit adding several upgrades in preparation for the ARC 2023, and since arriving back in the UK August 2024 a more thorough deep refit has been completed: Upgrades included new batteries, battery management system, 2 x 5Kw inverters, all rigging - standing and running, solar panels, rudder bearings and bushings. 220sqm parasailor, 2 x Raymarine Axiom screens, radar and AIS and the liferaft.serviced.

Boat Details

Length16.75m / 55 Ft
Draft1.3m / 4 Ft
Berths8
Beam8m / 26 Ft
Displacement9.63 Tonnes
Keel"Tradewind"

Construction

StructureCarbon/glass Infused Epoxy
BuilderBroadblue
DesignerDarren Newton

Rig

Structure
All Carbon spreader-less mast with synthetic NEW (2023) PBO rigging. Dyneema halyards and sheets. Square top, fully battened mainsail in Hydranet. Horizontal carbon fibre battened jib in Hydranet in Furlex roller furling system. Asymmetric spinnaker with Carver furler. Parasail with sheets, guys and snuffer.
Sails

Sail

Area

Type

Year

Condition

Fully Battened Mainsail 100 Banks 2015 Good
Jib with Carbon Battens 50 Banks 2015 Good
Asymmetric Spinnaker on Carver top down furler 150 Banks 2015 Good

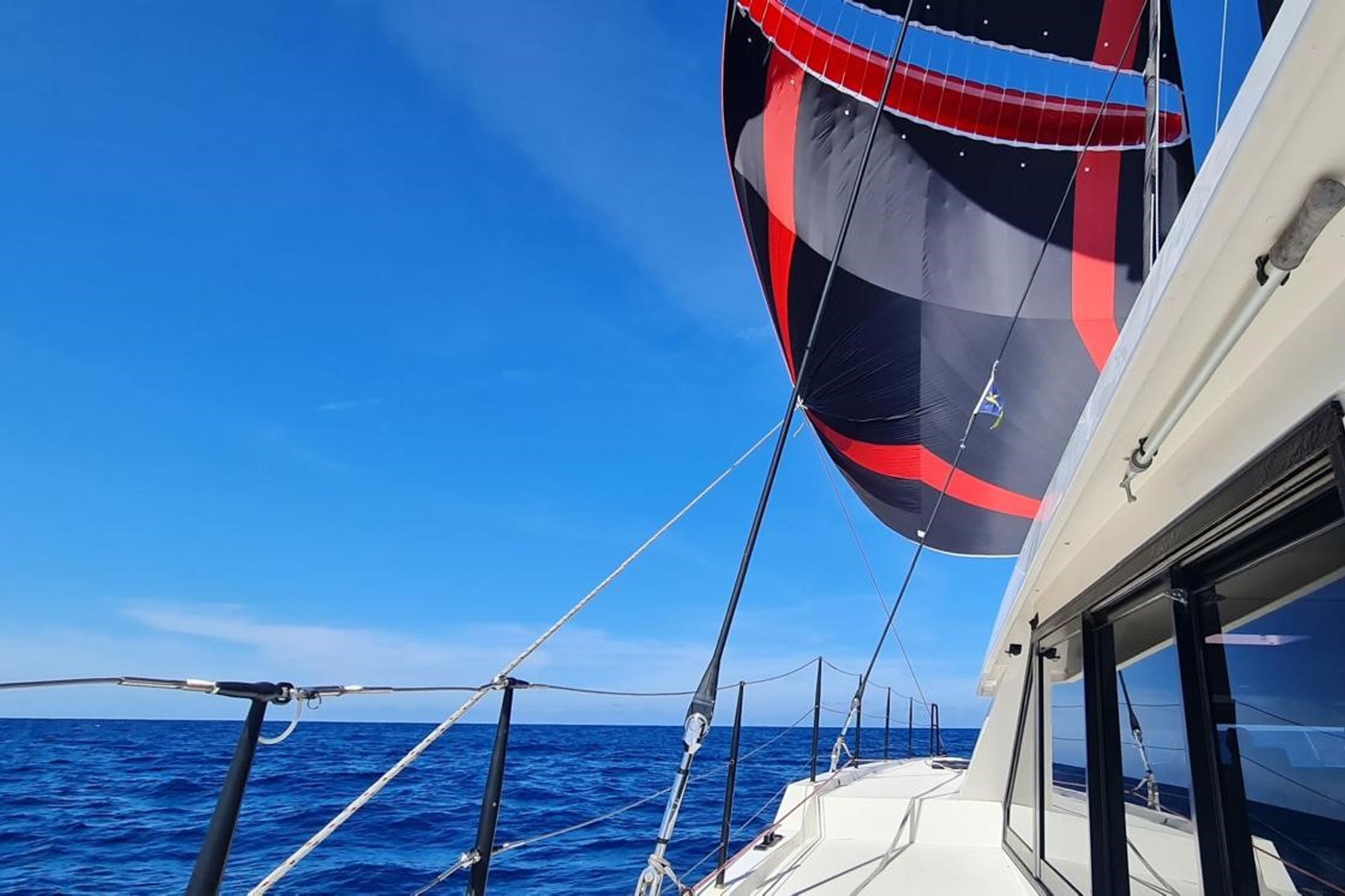

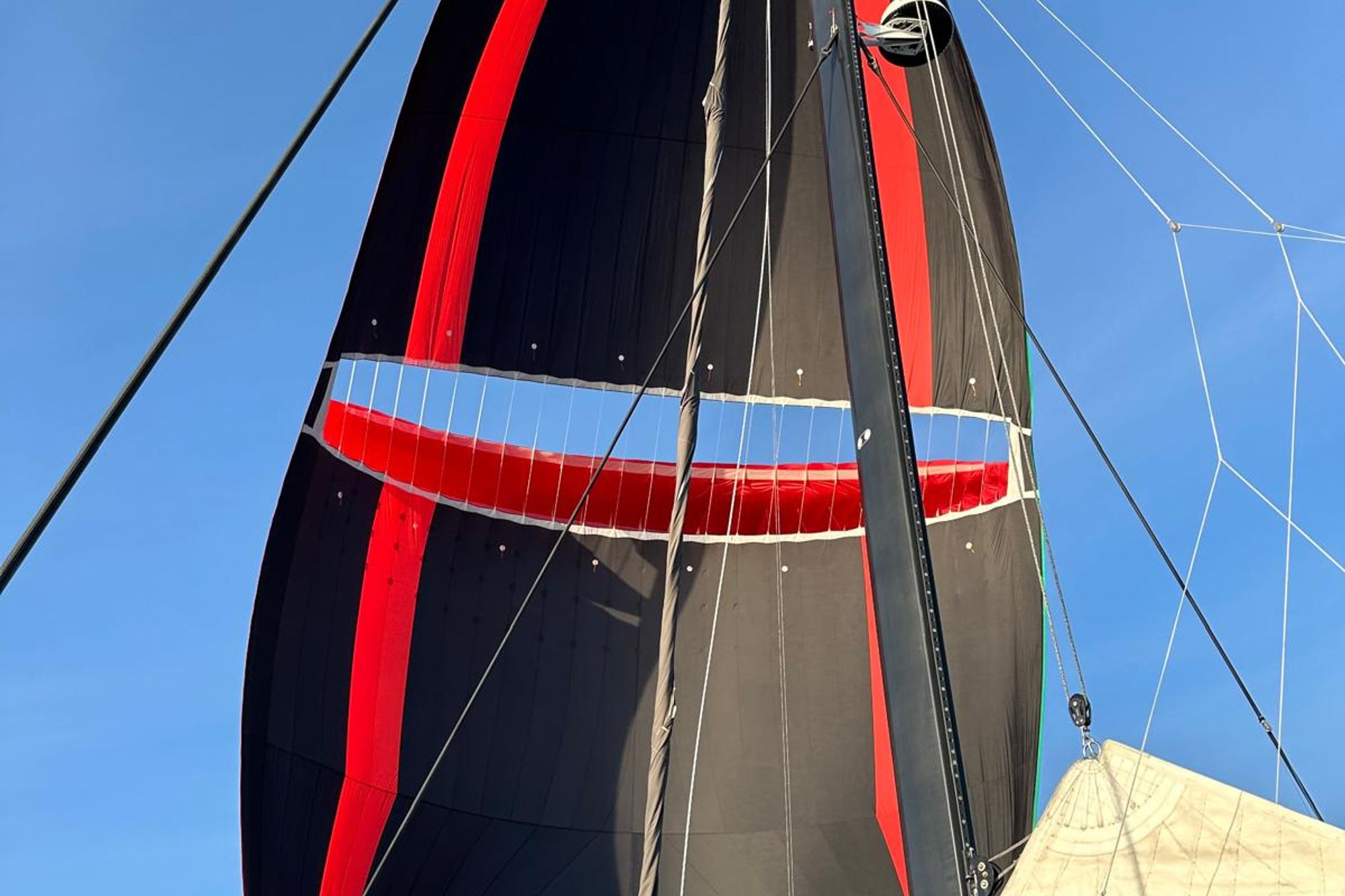

Parasailor with snuffer 220 Istec 2023 New

Accommodation

Comments

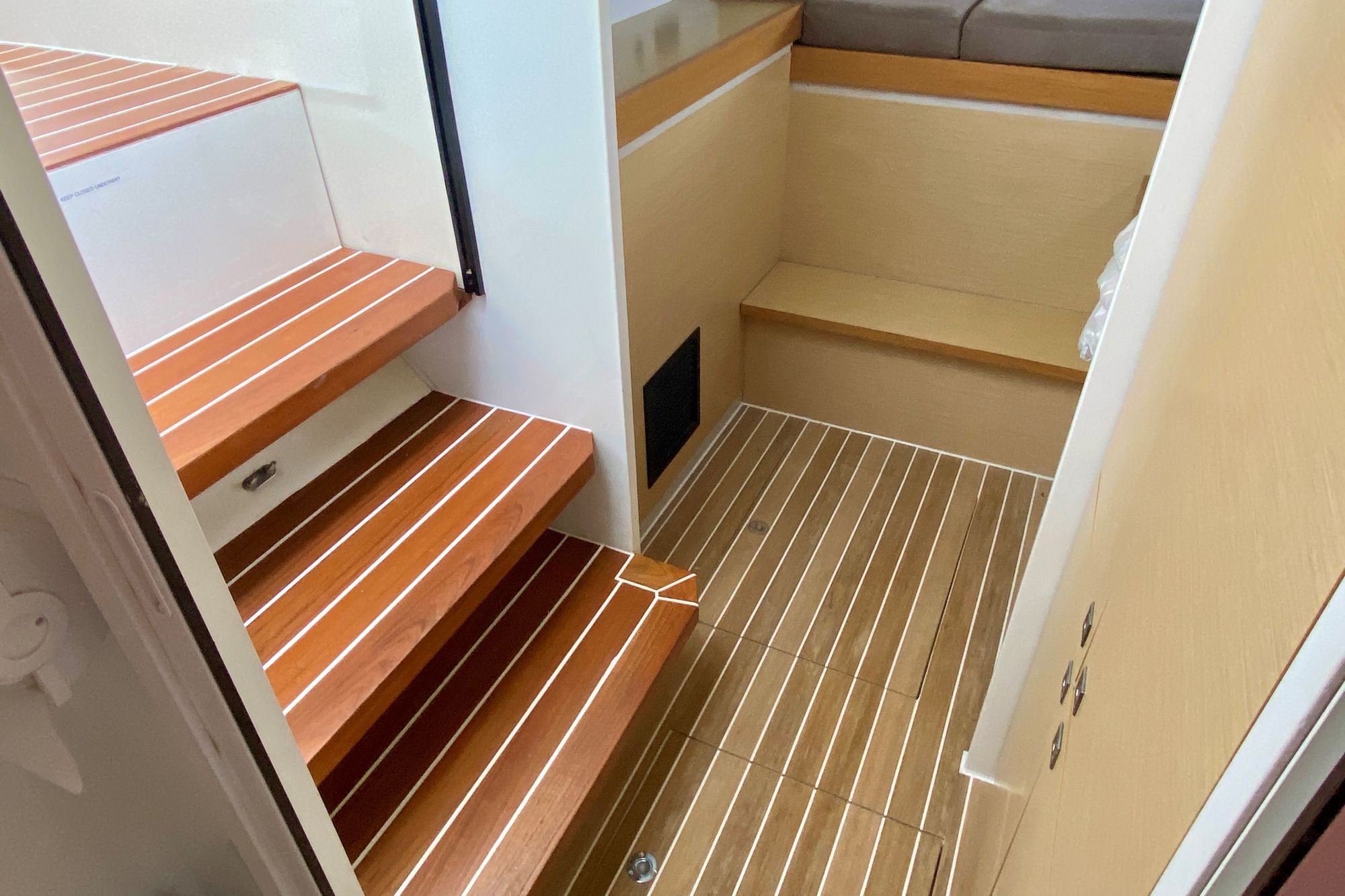

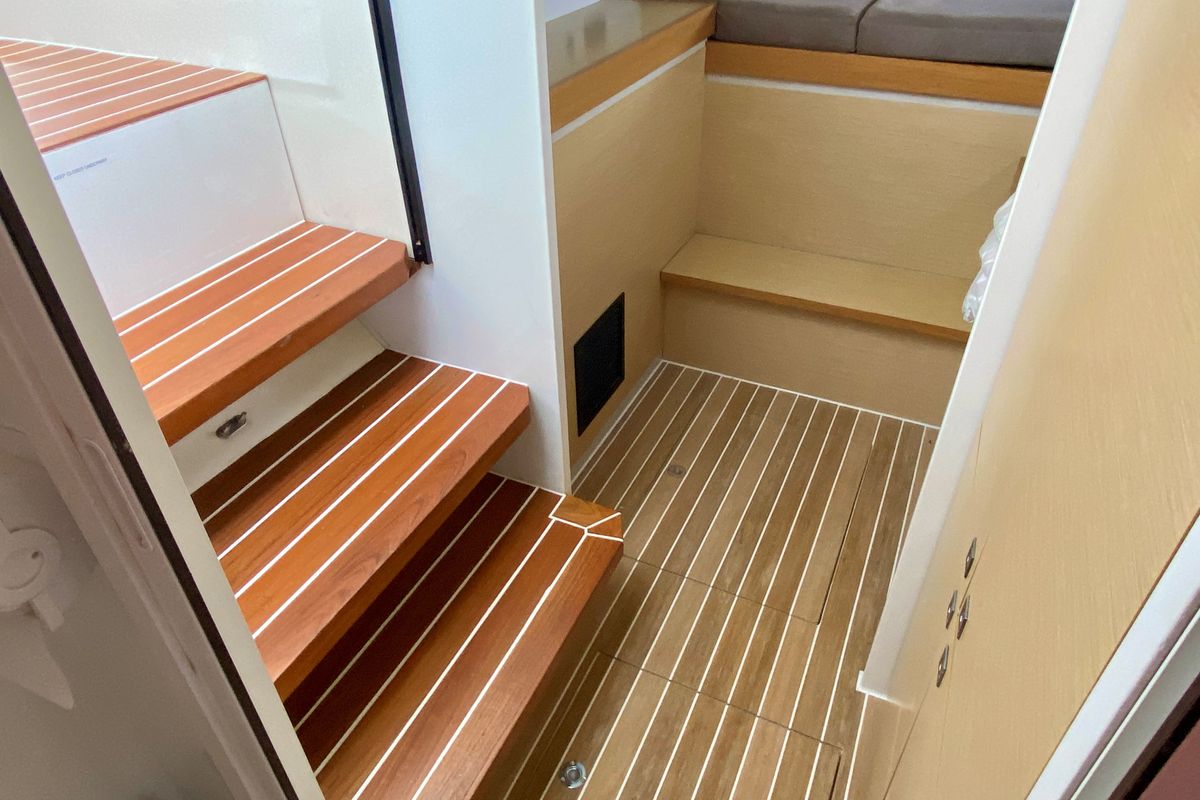

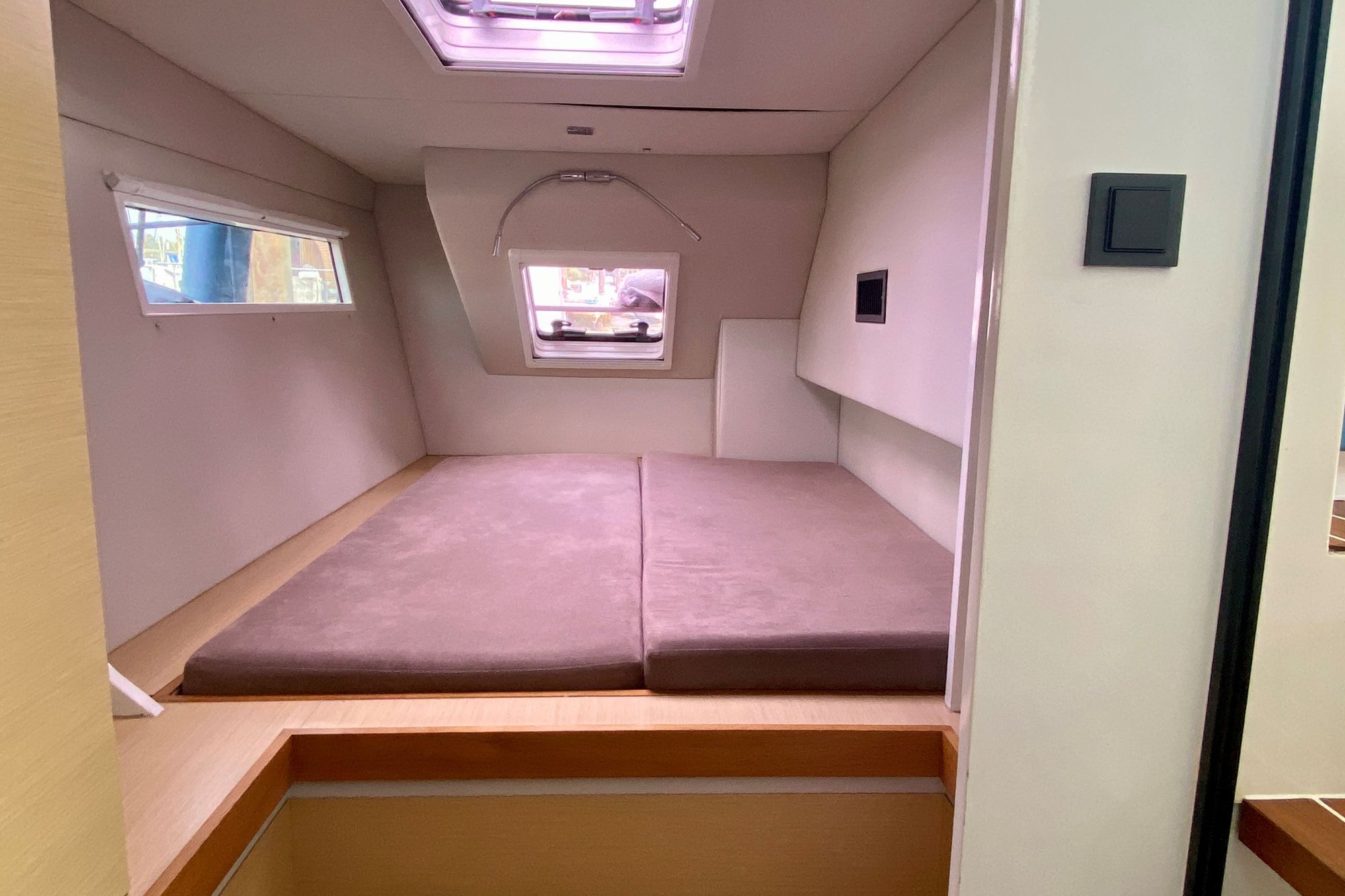

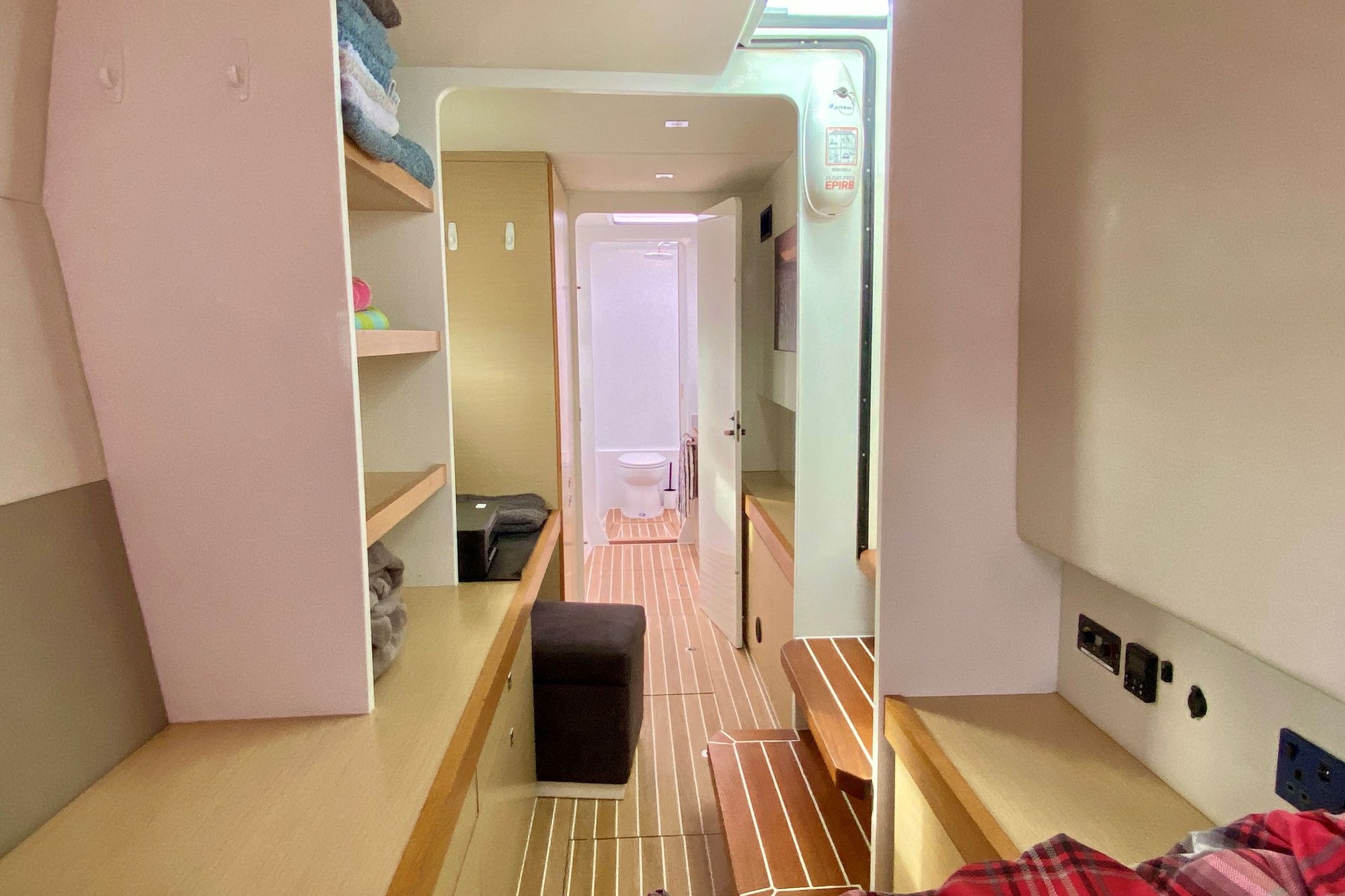

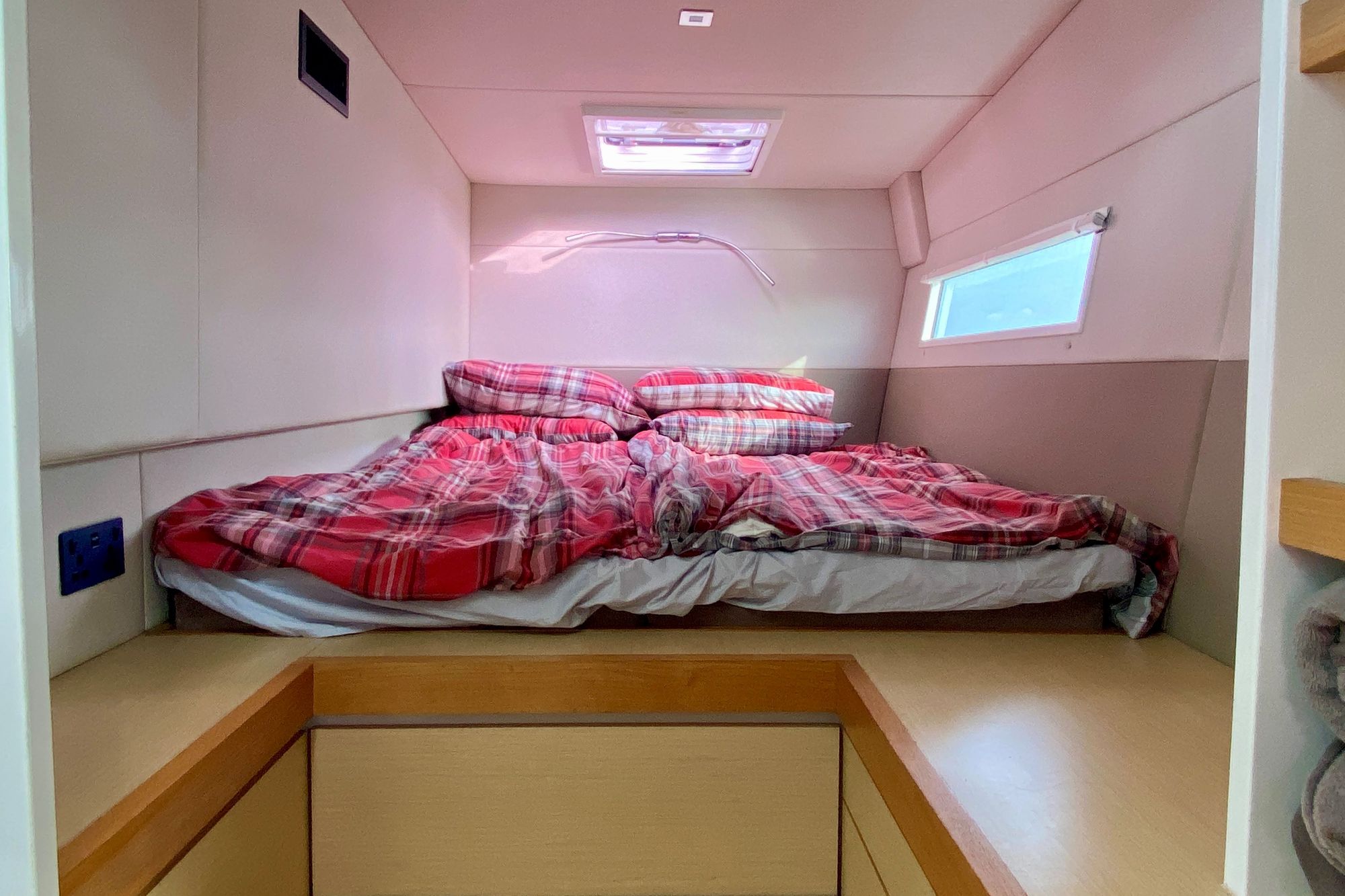

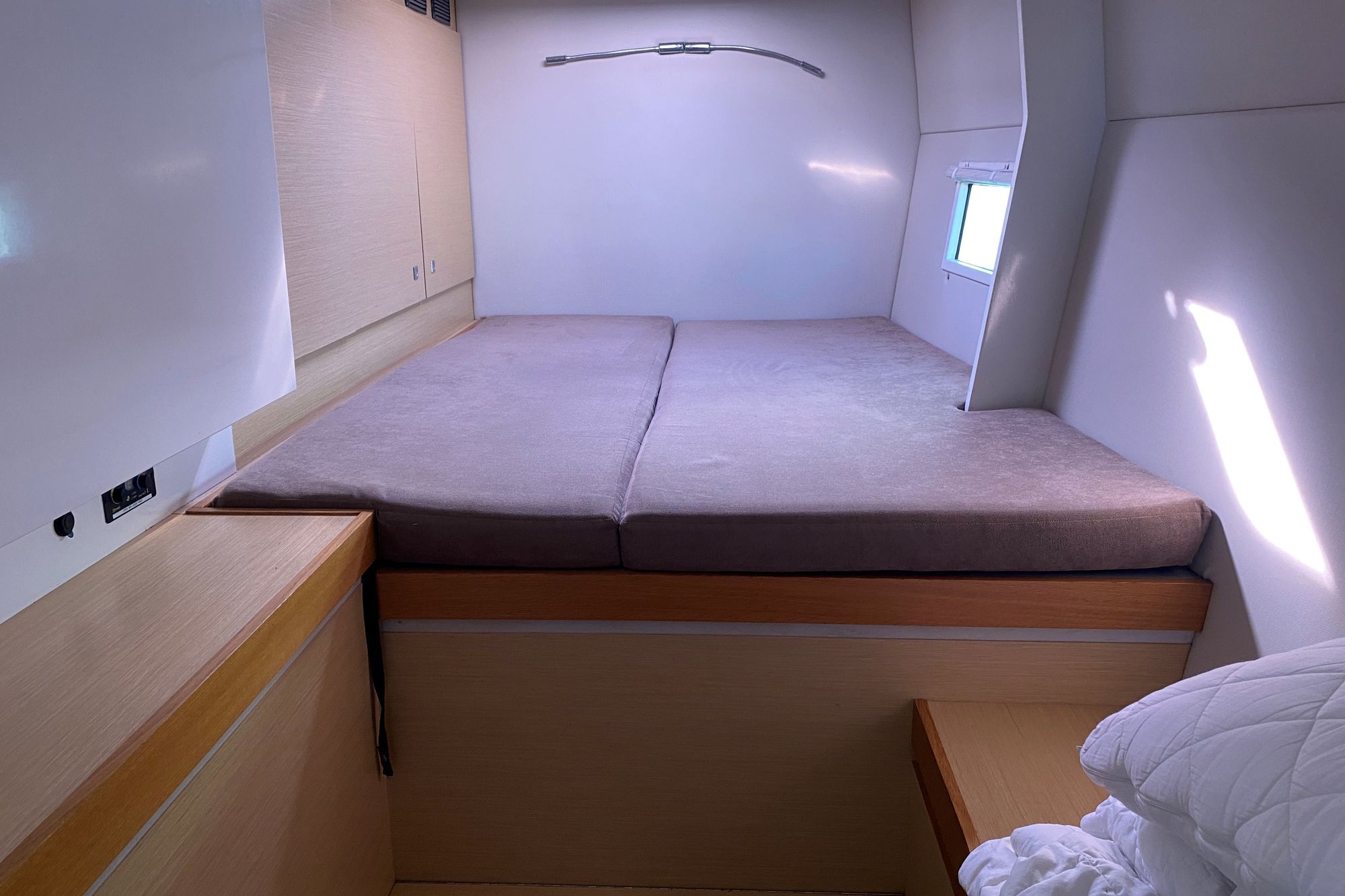

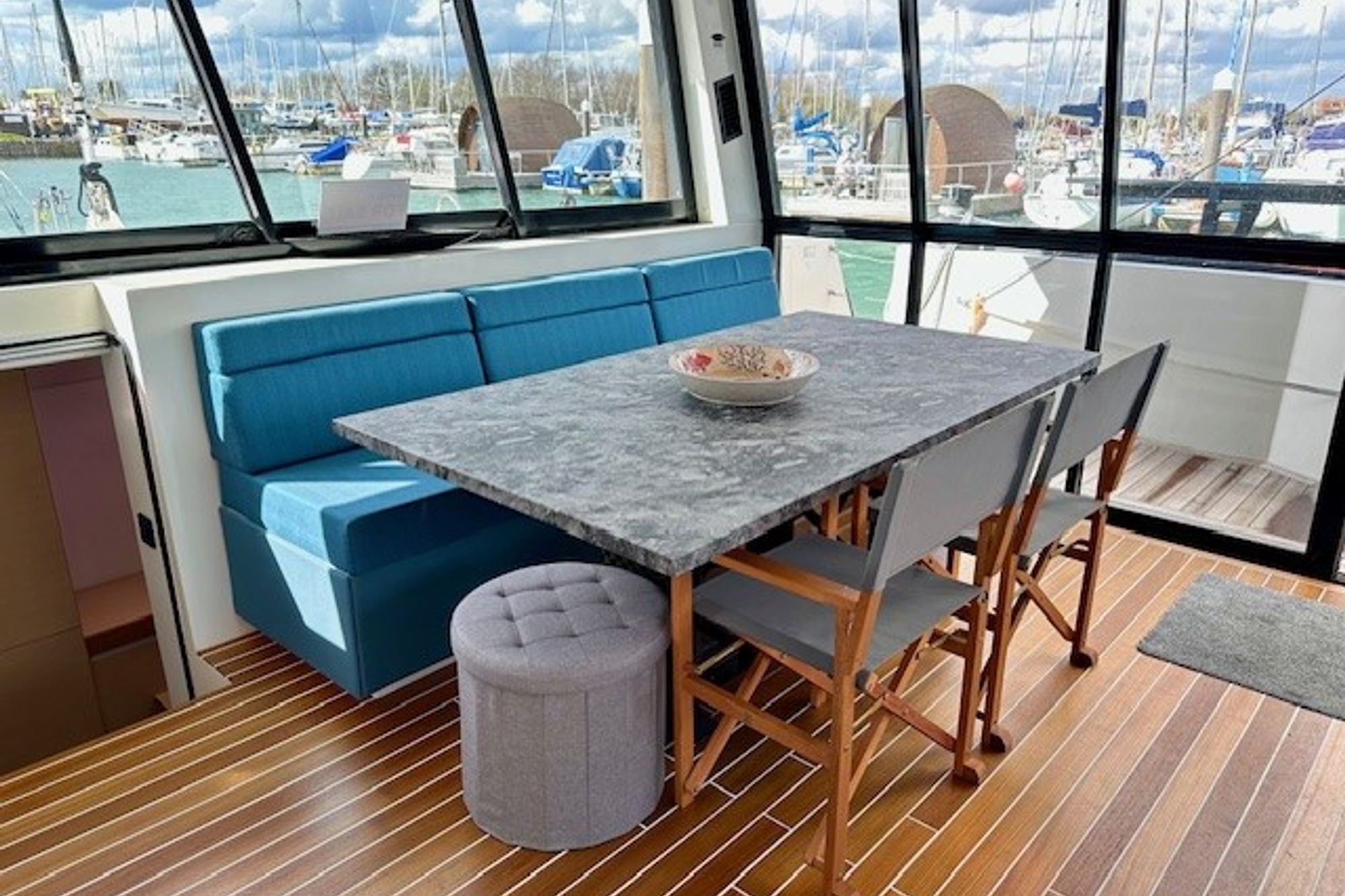

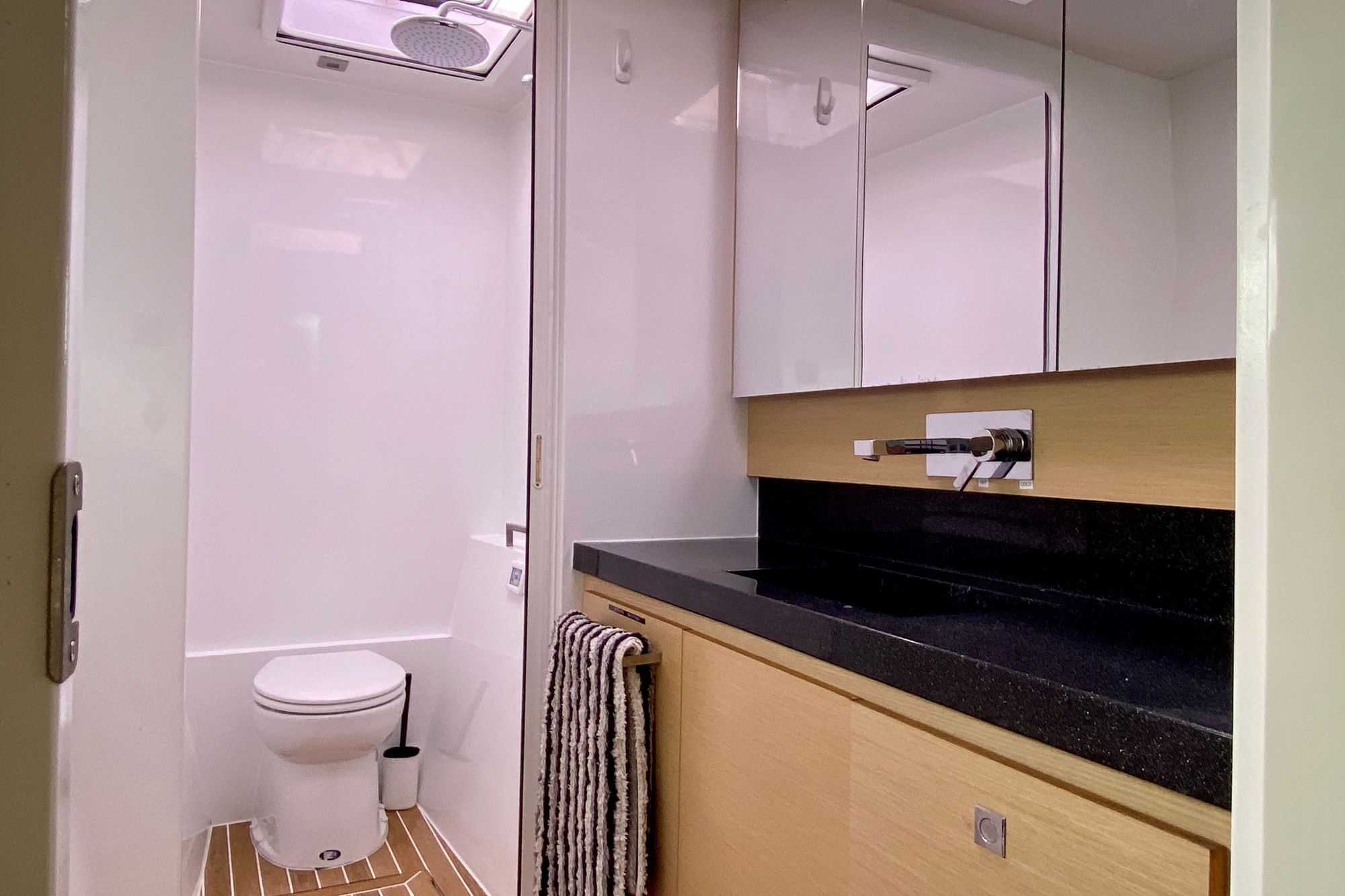

Three cabins, each with dedicated heads and shower. Master cabin in port hull with large owner berth, dressing area and spacious heads and shower room forward. Two double cabins in starboard hull, each with en-suite heads and shower. Seating in the saloon converts easily into a large double berth.
Hulls Headroom2.2m / 7 Ft
Saloon Headroom2.5m / 8 Ft

Engine

Make
Yanmar 40hp
Type
2 inboard diesels
Details
Twin 3 cylinder diesels on shafts - 3 Blade Folding Propellers. Engine hours approx 1000hrs each. Full service 2023.. 120amp alternators.

General Equipment

Equipment

Make

Model

Year

Quantity

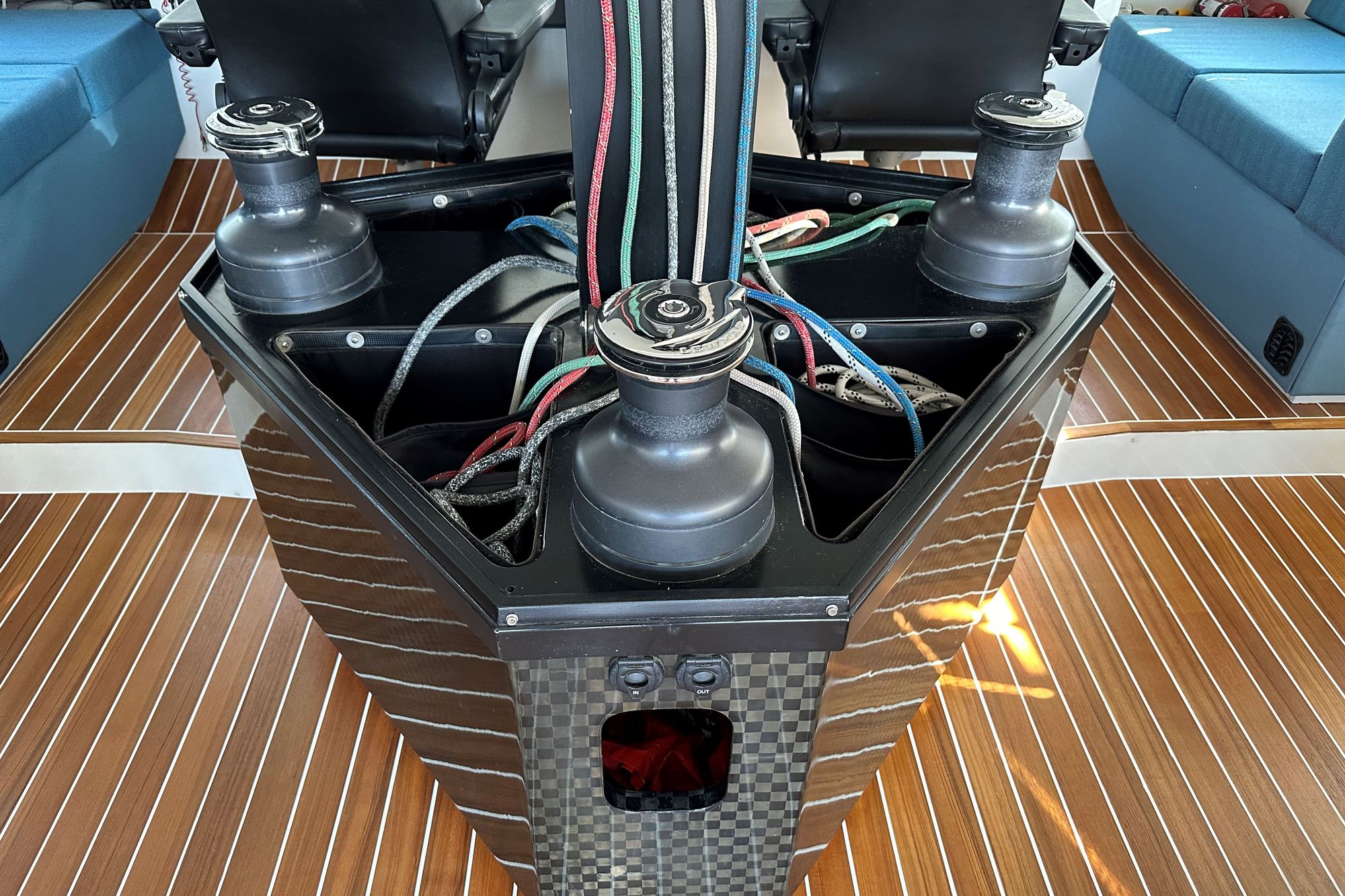

2 x Reversing winches to port and aft of sail station Lewmar REVO 2015
Electric winch to stbd of sail station Lewmar
2 x Aft winches to transom for asymmetric Lewmar

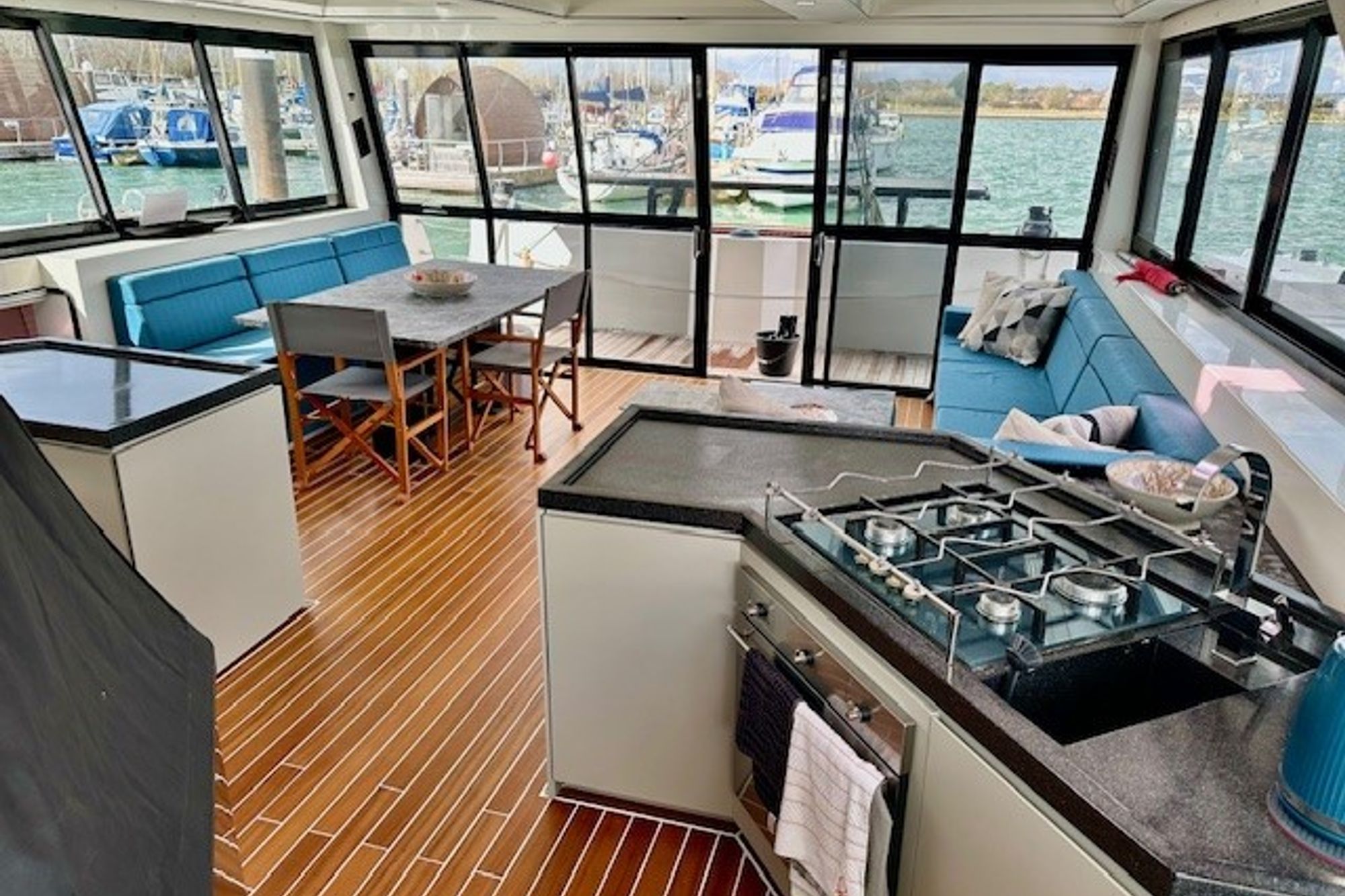

4 burner LPG hob with electric ignition and fiddel rails SMEG
Large oven with rotisserie - gas and electric SMEG

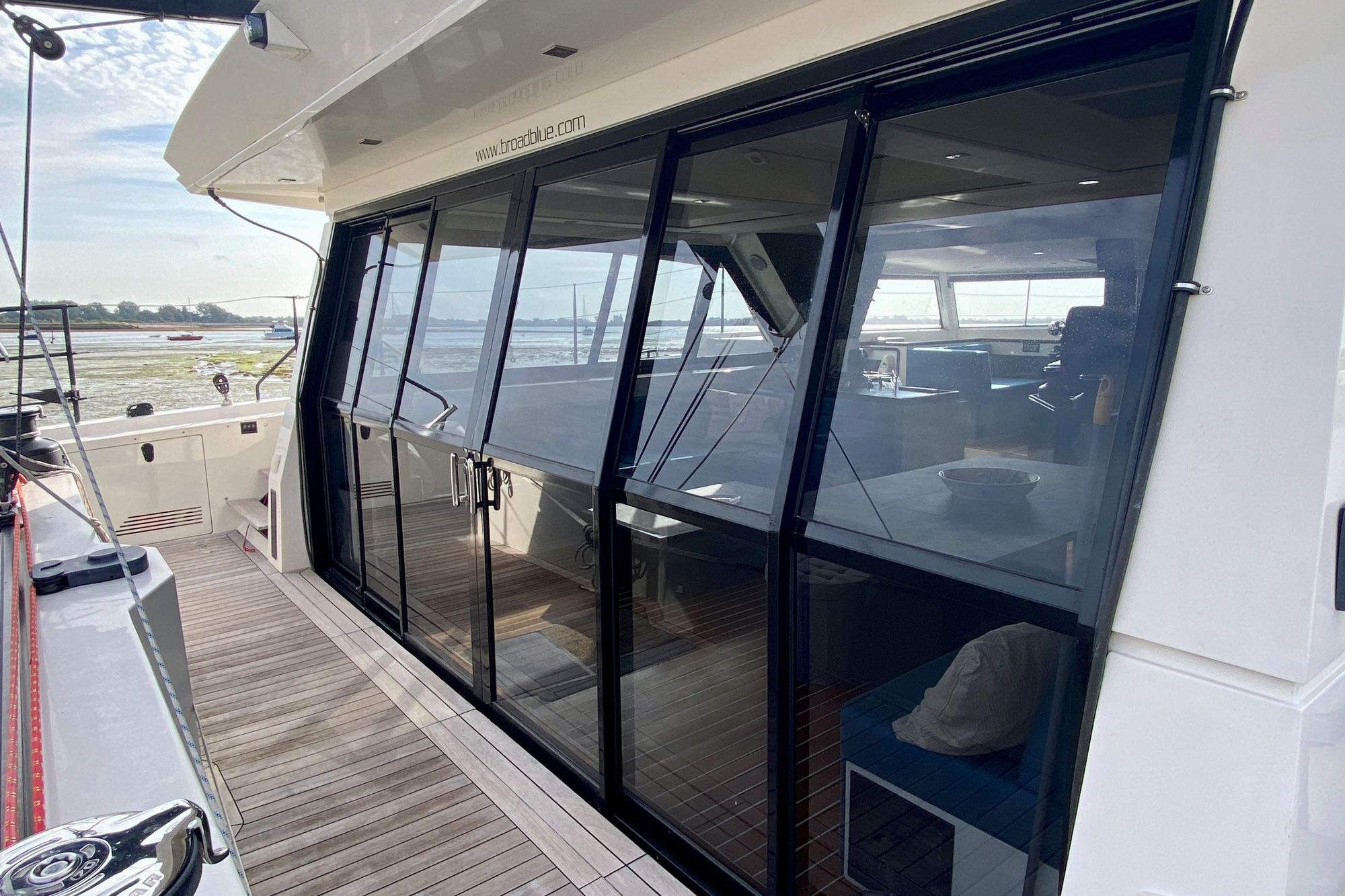

All glass windows - some with opening facilities
Teak flooring to main saloon and aft deck
2 x reclining and adjustable helm chairs Recaro
Vertical freezer Vitrifrigo
Vertical fridge Vitrifrigo
32" TV and AV centre on lifting system Blaupunkt
Hot water system with mixer taps and calorifier
Hot air heating system to each hull and saloon Eberspacher
Watermaker/dessalinator Nautilus 50 litre per hour 2021
Water recovery system to transfer rainwater to the onboard tanks 2021

Navigation Equipment

Equipment

Model

Year

Quantity

Plotter - inside helm Port Raymarine Axiom 2023
Plotter - inside helm Stbd Raymarine Axiom 2023
Plotter - outside helm- Port Raymarine a65 2015
Plotter - outside helm - Stbd Raymarine a65 2015
Wind direction and speed Raymarine i50 2015
Log and depth display Raymarine i50 2015
VHF radio Raymarine 2015
Radar and AIS Raymarine Quantum 2 2023
Hydraulic Autopilot Raymarine ACU400/EVO 2021
Secondary autopilot Raymarine 2023

Safety Equipment

Equipment

Quantity

Year

Make

LastService

Life belt and light 2 2018/2021
Up-side-up electronic safety system as used on many racing multihulls 1 2023 Up-Side-Up 2023
Danbouy 1
Liferaft 1 2015 Waypoint 2023
EPIRBS 3 2023

Electrical Equipment

Equipment

Quantity

Make

Capacity

Year

Node Distributed Power System - Central Controller at Helm 1 NXT 2015
Generator 1 Paguro 6000 7KVa 2015
LED lights throughout with pietzo switching
AC sockets to each cabin, galley and saloon 5
Air conditioning to each cabin and saloon 3 CLIMA 64,000 BTU 2015
Battery Protector 1 Victron
Smart batteries 4 Victron 330amp 2023
Solar panels 10 Solara/Off grid tech 1.2KW
Independent DC System for Bilge Pumps and VHF 1
FM/BT Entertainment system 1 Fusion RA205
Electronic engine controls and remote control for outside operation of engines. 1 Morse KE4
12v DC sockets to each cabin and helm console 4
Solar regulator 2 Victron Blue Solar with bluetooth 100/30 and 100/50
New Solar panels 3 Victron 3 x 300w 2023
Sea Hydrogenerator 1 Cruise Watt 600w 2023
Inverters 2 Victron Quattro 5kw 2023
Victron Cerbo System 1 Victron 2023
Starlink satellite internet connection 1 Starlink 2023
Ground Tackle
Spade anchor with chain and warp Anchor windlass with wired and wireless remote control Aluminium anchor - with chain and warp
Dinghy
2021 AB LAMINA 10AL Rib - aluminium floor with purpose made cover on full carbon davits. Tohatsu 4 stroke 9.8hp outboard (2021)
